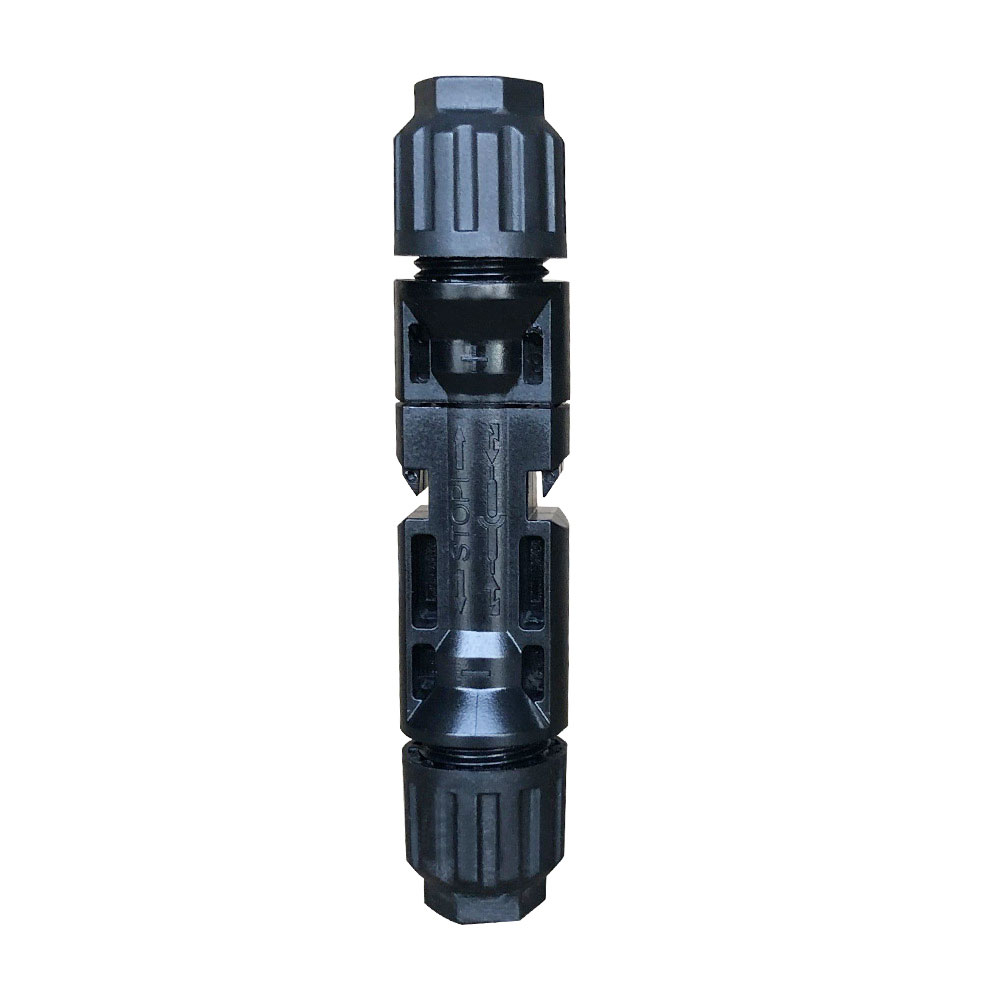

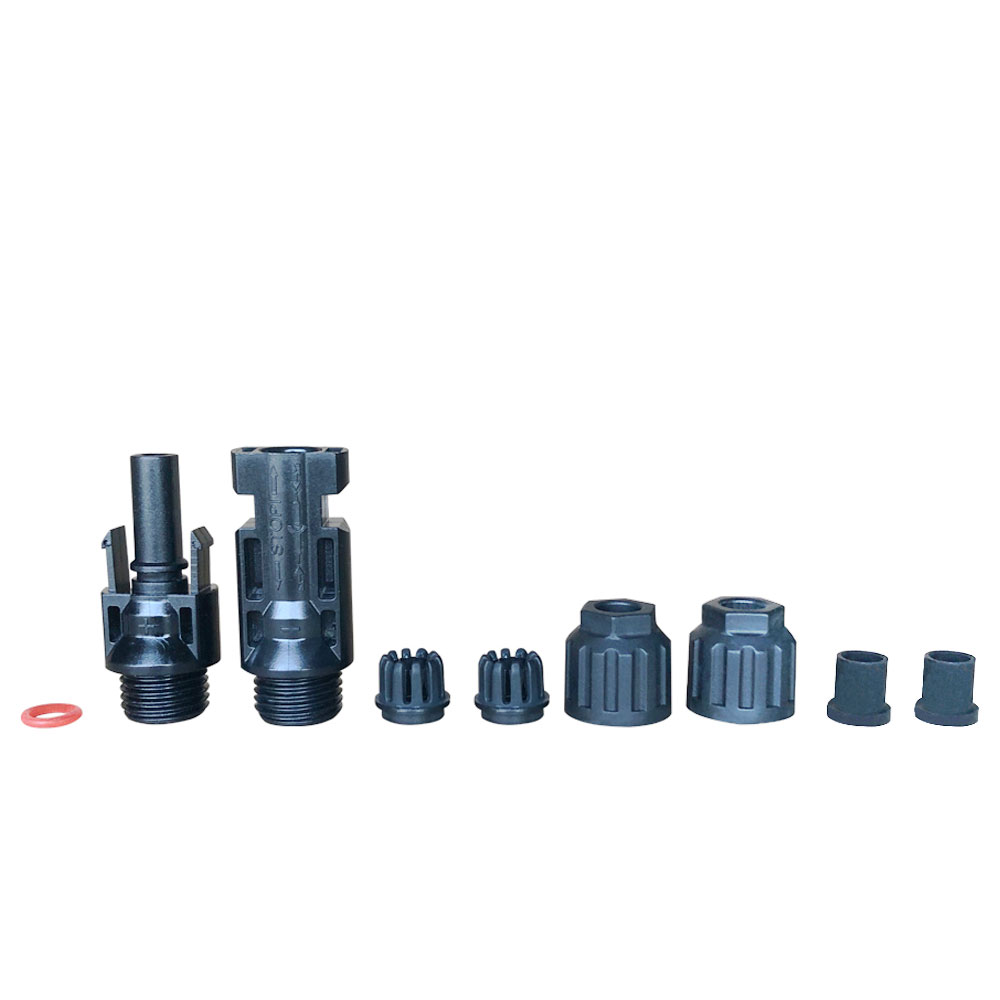

PV-MC (PC) is a set of connectors for connecting solar panel circuits. It is widely used in solar panel junction boxes, photovoltaic wiring harnesses, energy storage wiring harnesses, photovoltaic projects, etc. It can safely and quickly connect various circuits and features dustproof, waterproof, anti-aging, UV resistant, easy to install, safe, and long service life.
| Product Name | PV-MC(PC) |
| Rated Voltage | 1000V |
| Insulation Material | PC |
| Conductor Material | Copper tin-plated |
| Ambient Temperature | -20°C~+55°C |
| Product Temperature | -20°C~+80°C |
| Security Class | DCII |
| Waterproof Grade | IP67 |
| Contact Resistance | ≤0.5m0 |
| Connection System | Multi-point connection |
| Self-Locking System | Embedded |
| Wiring Method | Crimping |
| Wiring Specifications | 2.5mm2, 4mm2, 6mm2 |
| Rated Current | 1.5mm2:17A 2.5mm2:22.5A 4mm2~ 6mm2:30A/50A |
| Flame Retardant Rating | UL94-V2 |
